Importing Layer Symbology into ArcGIS Pro for Landscape Fire Behavior

IFTDSS uses a specific color scheme for Map Studio and report figures. When you download IFTDSS files for use in ArcGIS Pro, you can duplicate this color scheme using our .lyrx files contained in the "Symbology_ArcPro" folder. The .lyrx file contains all the color specifications used by IFTDSS.

Lyrx files in the Landscape Fire Behavior download include:

  • Crown Fire Activity
  • Fireline Intensity
  • Flame Length
  • Heat per Unit Area
  • Midflame Wind Speed
  • Rate of Spread
  • 1-hr Fuel Moisture
  • 10-hr Fuel Moisture
  • 100-hr Fuel Moisture

Important! The symbology was designed to match the units in Map Studio; however, the units in GeoTIFF are not always the same. For example, Flame Length is meters in the GeoTIFF, and feet in the legend. In the image below, the value for the pixel at the black dot is 0.348355 m. This is 1.1429 feet and is in the >1-4 class in the legend (lime green).

Identify window in ArcGIS Pro open showing the unique value, class value, and pixel value for a pixel.

See the Landscape (LCP) GeoTIFFs from IFTDSS topic for the units in Map Studio versus the GeoTIFF.

In the Landscape Fire Behavior download package available in IFTDSS, we include a folder entitled "Symbology_ArcPro." The symbology folder contains ArcGIS Layer (.lyrx) files to define the symbology for most of the layers visible in Map Studio for use in ArcGIS Pro. In the GeoTIFF, the Landscape Fire Behavior layers are both categorical and continuous data, therefore importing the symbology is slightly different for the two types.

IFTDSS download file directory, showing several .lyrx files for fuel moisture, flame length, and other features

Although Max Spread Direction (degrees) is visible in Map Studio, we have not included an ArcGIS Layer file because it is created on the fly within IFTDSS and there is not an equivalent layer in the download package.

In addition, we have not included layer files for layers included in the Landscape Fire Behavior GeoTIFF not shown in Map Studio. These include 1000 Hour Fuel Moisture, Crown Fraction Burned, Horizontal Movement Rate, Maximum Spotting Direction and Distance, Maximum Spread Direction, Solar Radiation, Wind Direction and Wind Speed.

Importing symbology for Crown Fire Activity

The Crown Fire Activity layer in the Landscape Fire Behavior GeoTIFF is categorical data. The following steps outline how to import the symbology for categorical data.

  1. Open ArcGIS Pro session and add the layers you would like to map. For more information on how to add layers to ArcGIS Pro please see the Opening an IFTDSS GeoTIFF file in ArcGIS Pro topic.

  2. Right-click the "Crown Fire Activity layer" and click Symbology to open the Symbology pane.

    Crown Fire Activity layer options menu with 'Symbology' visible in the menu.

  3. In the Symbology pane, go to the Primary Symbology drop-down and select "Unique Values." You may get a pop-up window asking if you would like to compute unique values. Click Yes.

    A pop up asking if you would like to build an attribute table.

  4. Click the Options icon options toward the top right of the Symbology pane. In the drop-down that opens, click Import from layer file. This opens the Import Symbology browse window. Select the "Crown Fire Activity.lyrx" file located in the "Symbology_ArcPro" folder of your IFTDSS download package, and click OK.

    A file list of .lyrx files available for selection as part of the import symbology process

  5. Now you can see Crown Fire Activity in ArcGIS Pro is the same as it appears in IFTDSS Map Studio.

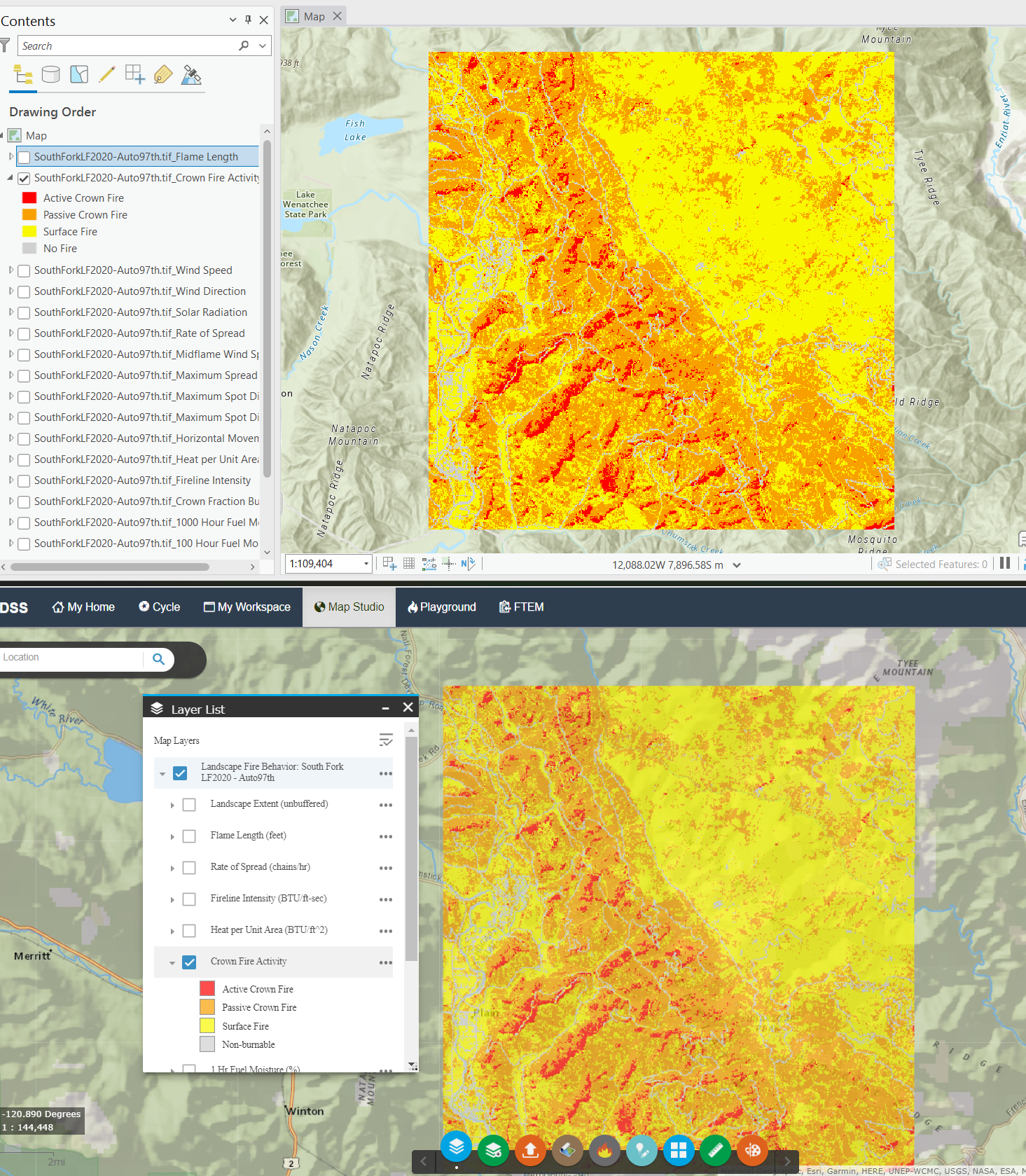

    IFTDSS and ArcGIS Pro with identical Crown Fire Activity maps.

Importing symbology for 1, 10, and 100 Hour Fuel Moistures, Fireline Intensity, Flame Length, Heat per Unit Area, Midflame Wind Speed, and Rate of Spread

The same steps are completed to import the symbology for 1, 10, and 100 Hour Fuel Moistures, Fireline Intensity, Flame Length, Heat per Unit Area, Midflame Wind Speed, and Rate of Spread. These data sources are continuous data that are classified into distinct bins. The following steps outline how to import the symbology for continuous data. The example below will use Flame Length; however, the same steps are applied to the remaining layers.

  1. Open ArcGIS Pro session and add the layers you would like to map. For more information on how to add layers to ArcGIS Pro please see the Opening an IFTDSS GeoTIFF file in ArcGIS Pro topic.

  2. Right-click the "Flame Length" layer and click Symbology to open the Symbology pane.

    flame length layer options in ArcGIS Pro with the 'symbology' option visibile in the menu

  3. In the Symbology pane, go to the Primary Symbology drop-down and select "Classify."

    'classify' is highlighted in the drop-down menu.

  4. Click the Options icon options toward the top right of the Symbology pane. In the drop-down that opens, click Import from layer file. This opens the Import Symbology browse window. Select the "Flame Length (ft).lyrx" file located in the "Symbology_ArcPro" folder of your IFTDSS download package, and click OK.

    A file list of .lyrx files available for selection as part of the import symbology process

  5. Now you can see Flame Length in ArcGIS Pro is the same as it is in IFTDSS Map Studio.

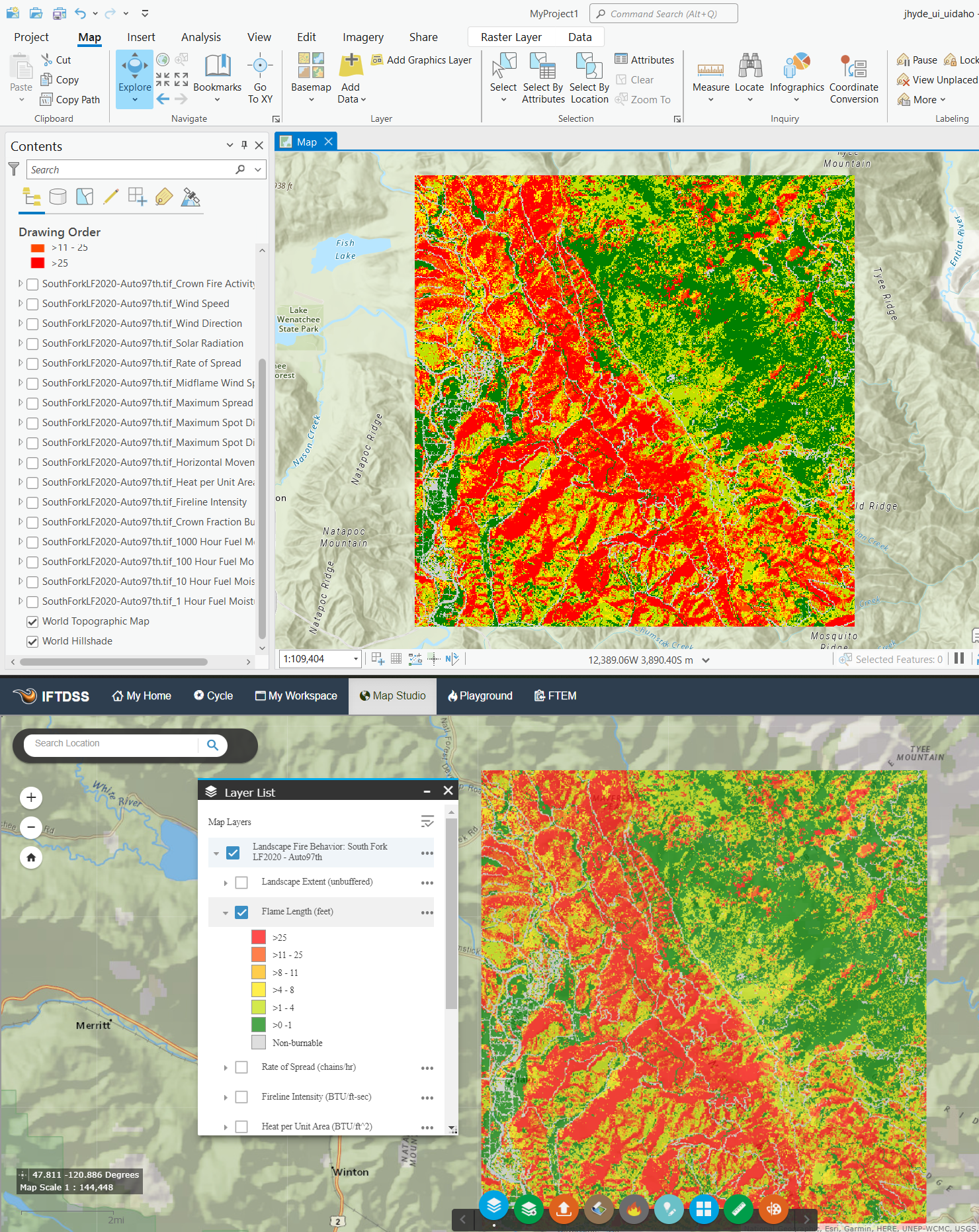

    Flame length layer in ArcGIS Pro displaying the same symbology as IFTDSS map studio
